An excitation current test is a low-voltage check for transformer core and winding issues. Learn why a three-phase test can reveal problems that a standard single-phase test might miss.

The transformer excitation current test is a sensitive, low-voltage diagnostic performed to detect issues within the transformer’s magnetic core, and sometimes, the windings themselves. It’s an excellent tool for identifying problems like turn-to-turn shorts, core grounding issues, or damage from over-fluxing events.

Traditionally, this test was performed by applying a single-phase AC voltage to each winding individually and measuring the current drawn. While effective, this method has a limitation: it doesn’t fully replicate the rotating magnetic field conditions the transformer sees in service. Modern test sets now offer the ability to perform a three-phase excitation current test, providing a more comprehensive and often more revealing assessment.

Limitations of the Single-Phase Method

In a single-phase test, a voltage is applied to H1-H2, then H2-H3, then H3-H1. For a healthy three-phase transformer, you expect a specific pattern: the two outer limb windings (Phases A and C) should draw a similar, low current, while the center limb winding (Phase B) will draw an even lower current (typically 30-60% less) because its magnetic flux path is shorter and more efficient.

This pattern is a good baseline. However, because each winding is energized independently, the test may not be sensitive enough to detect subtle issues in the core that only become apparent under the influence of a balanced, three-phase magnetic flux.

The Power of a True Three-Phase Test

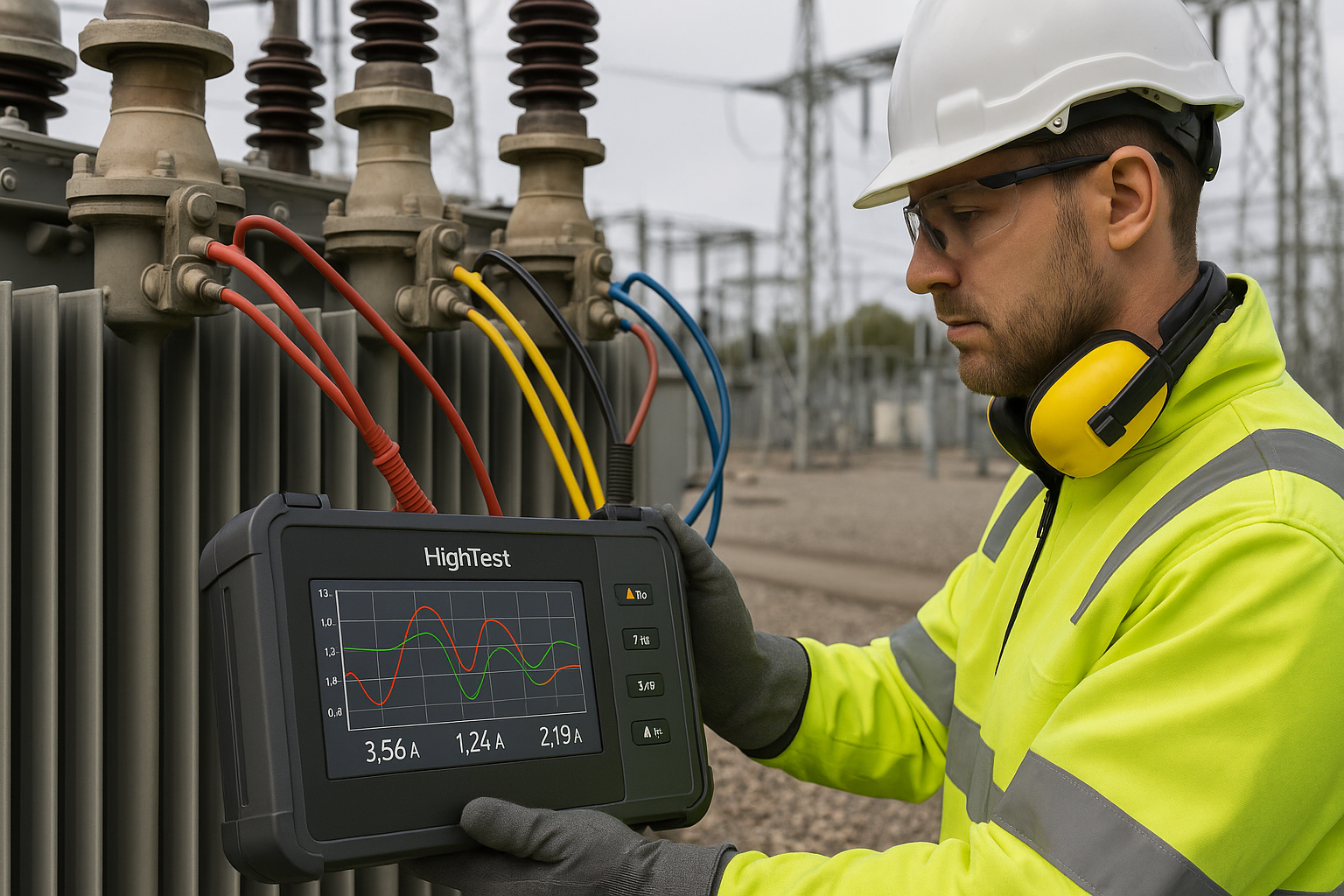

A three-phase excitation test, performed by a test set like the HighTest TURA-03, involves applying a true, balanced three-phase voltage to the H1-H2-H3 terminals simultaneously. This creates a rotating magnetic field inside the core that closely mimics real-world operating conditions.

The key benefit is that it measures the phase-to-neutral excitation currents for all three phases at once.

Interpreting Three-Phase Results

In a three-phase test on a healthy transformer, the results are straightforward: the currents for all three phases should be balanced and very similar. Any significant imbalance is a clear red flag.

What can this imbalance indicate?

  • Turn-to-Turn Shorts: A short in one winding will cause a significant increase in current for that specific phase, making the imbalance immediately obvious.
  • Core Issues: Problems with core lamination insulation or shifting of the core steel can disrupt the magnetic flux balance, leading to unequal currents between the phases.
  • Tap Changer Problems: A poor contact on a specific phase’s tap changer can also result in a current imbalance that might be less obvious in a series of single-phase tests.

Conclusion: A More Complete Diagnostic Picture

While the single-phase excitation current test remains a valid and useful diagnostic, the three-phase method offers a more functionally accurate and often more sensitive analysis. By simulating the transformer’s in-service magnetic environment, it can highlight imbalances and defects that might otherwise be masked. For engineers seeking the most thorough assessment of a transformer’s core and winding health, adopting the three-phase excitation current test is a logical step toward a more predictive and reliable maintenance strategy.
