WINRES-20B Brochure EN

WINRES-20B is designed by advanced engineering technology to measure the winding resistance of transformers.

WINRES-20B can measure current, voltage, power transformer winding and shunt resistors. Applying up to 20 A DC allows WINRES-20B to measure the winding resistance of transformers quick and precise.

The smart design of WINRES-20B makes more apparent to determine the conclusion of measurements automatically according to users’ decision. WINRES-20B can measure two resistance values concurrently by its two voltage measurement channels. Users can prefer to test two primary or two secondary or one primary and one secondary winding according to the transformer configuration.

Beginning from 0.01 μΩ resistances, WINRES-20B can measure up to 100,000 Ω resistance. WINRES-20B discharges the measured circuit after each test. For inductive load WINRES-20B can demagnetise the load. The temperature measurement input enables one to connect an optional sensor to WINRES-20B and perform temperature correction automatically.

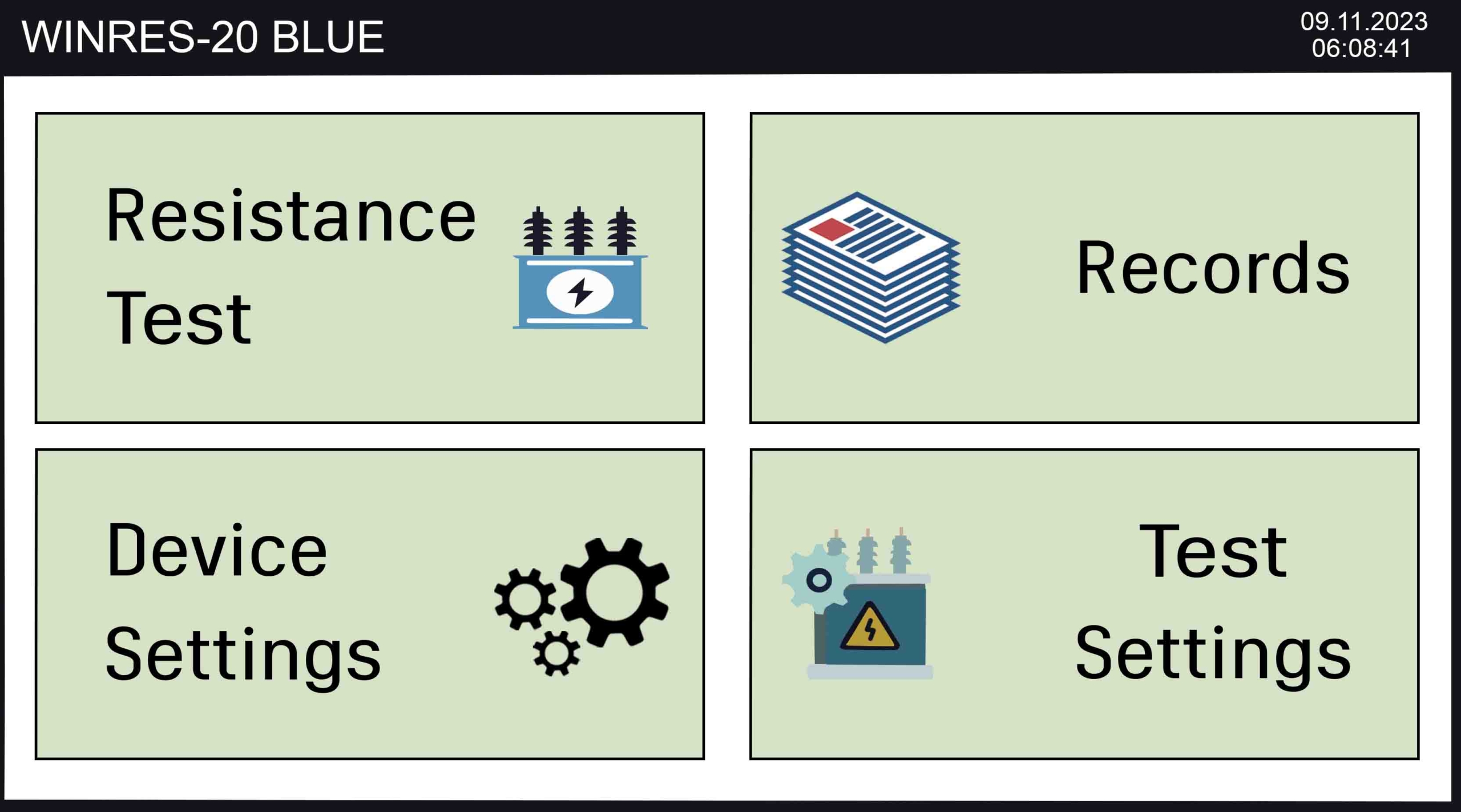

WINRES-20B’s intelligent software allows controlling the current flow if there is a failure on the current circuit. With this feature, WINRES-20B procures added safety to users. A 7-inch colour touch display allows WINRES-20B to show all measurement results on a single screen.

WINRES-20B can be controlled by USB-Bluetooth (optional) interface and users can record/store measurement results. In case setting up Laptop or PC for the on-field test is difficult; users can record data to the device’s internal memory (up to 100 Test Records) or external USB flash memory.

With the HighTest Data Management Platform (DMP Software), users can control WINRES-20B and analyse measurement results. Operators can easily print the measurement results with the 2.28-inch built-in Printer of WINRES-20B. WINRES-20B has battery power feature which allows users to make tests even when there is no electricity.

Multi-language capability and user-friendly operation menu make it easy to control WINRES-20B, even by less trained staff.

Three-Phase Adapter TPA-03 (Optional) allows connecting all primary and secondary sides concurrently, whereby users can select either to test the resistance of all phases or selective phases. With the TPA-03 option, WINRES-20B can control tap changer (raise and lower) via its tap changer outputs.

WINRES-20B is a light, compact and rugged device with the protection of IP67.

FEATURES

  • 2 channels resistance measurement
  • Measurements from 0.01 μΩ to 100,000 Ω
  • 0.001 A to 20 A DC adjustable current output
  • High accuracy (0.1%)
  • Demagnetisation feature
  • User-friendly operation menu
  • Temperature correction (1 input, sensor optional)
  • Built-in printer (2.28-inch)
  • Data Management Platform (DMP Software) enables to control WINRES-20B and analyse results
  • Battery Power
  • Internal memory, USB Flash Drive
  • PC control via USB cable
  • Bluetooth control and communication (Optional)
  • 7-inch large colour touch display
  • Emergency stop
  • Multi-language
  • Optional Three-Phase Adapter (TPA-03) makes WINRES-20B outputs once a time connectable to three-phase power transformers primary and secondary sides.

TECHNICAL SPECIFICATIONS

Measurement Parameters2 channel resistance
Test Voltage50 V
Current outputFrom 0.001 A to 20 A DC (User-selectable)
Resistance MeasurementFrom 0.01 μΩ to 100,000 Ω
AccuracyCurrent ValueResistance ValueAccuracy
1 mA – 10 mAUp to 100 kΩ0.1 % rdg 0.1 % of Fs
10 mA – 100 mAUp to 5 kΩ0.1 % rdg 0.1 % of Fs
100 mA – 1 AUp to 500 Ω0.1 % rdg 0.1 % of Fs
1 AUp to 50 Ω0.1 % rdg 0.1 % of Fs
20 AUp to 2.5 Ω0.1 % rdg 0.1 % of Fs
DemagnetisationYes
Power Supply100 – 240 V 47/63 Hz
Battery (Option)14.4 V 6.9 Ah Built-in Battery
Memory   Up to 100 records (include up to 25 tap results)
Printer2.28-inch built-in Printer
CommunicationUSB 2.0/1.1 Standard-A, USB 2.0/1.1 Standard-B, Bluetooth (factory install option)
PC SoftwareDMP Software
Display7-inch Colour Touch Display
Dimensions16.7″ x 13.4″ x 6.8″  (424 mm x 340 mm x 173 mm )
Weight7 kg
Working Temperature-10 °C to + 60 °C
Protection ClassIP67 (case closed)
Cables15 feet (4.5 m) cable set
Set of PackageWINRES-20B, Power Cable, Ground Cable , 1x 15 feet Current Cable Set, 2 x 15 feet Voltage Cable Set, 30 feet Extension Cable Sets for Current and Voltage channels, USB Cable, Tap Changer Cable Set, Jumper Cable, Printer Paper (x2), USB flash drive, Instruction Manual (Soft Copy), DMP Software, Cable Bag
OptionsHard carrying case, Bluetooth (factory install option), Three-Phase Adapter TPA-03, Temperature Sensor

Specifications are valid under 25 °C temperature. *Contents subject to change without notice.
Version V03B 01/2020
